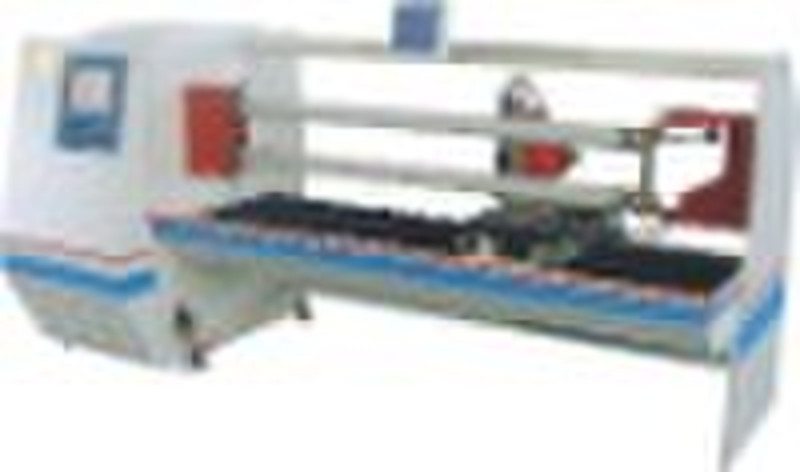

FR-1300B Automatic PVC Electrical Tape Slitting Ma

Application Suitableforcuttingroll-stockmaterialssuchasadhesivetapes,textiles,foam,rubber,foil,gaskets,vinyl,non-woven,glasscloth,silicone,PTFE,PSA,plastics,DPC,cork,felt,graphite,protectionfilm,protectiontape,medicalandfoodgradeapplicationsetc. Feature 1.Maindrivingpart:ACmotorwithfrequencyconverterisemployed. 2.Centralcontrolunit:programmablecentralcontrolisusedandvarioussizescanbesetonthesameshaftforautomatictransferandcutting. 3.Operatingpanel:allfunctionsareoperatedonthe10.4"TaiwanEVIEWLCDtouchpanel. 4.Motorcontrolsystem:thecentralcontrolsystemisPLCprogrammablecontroller. 5.Cuttingpositioningsystem:controlledbyMitsubishiservomotor.Theimportedhighprecisionballscrewisappliedtosetthesizeandthelinearsliderailistobeartheloadofthecutterseat. 6.Bladefeedingpositioningsystem:controlledbyMitsubishiservomotor,andthecuttingspeedisadjustableinthreestages.Theefficiencyisimprovedandthebestqualityisguaranteed. 7.Autoangleadjustmentofcircularblade:Mitsubishiservomotorisusedtocalculatethecircularbladeangleandtheanglechangeissubjecttodifferentmaterials(theanglechangerangeis±8°).Thecuttingangleischangeddirectlywhenthecuttingsurfaceisnotsmooth,sotheefficiencyisimproved. 8.Quickshaftchangesystem:threekindsofshaftsareavailableandquickchangeofshaftsisappliedfordifferentmaterials. OptionalParts: 1.Othersizecuttingshaft:ItcanbemadeaspertherequiredcoreI.D. 2.Cuttingsupporter:Forsupportinglogrollwhencuttingcorebelow38mm. 3.Safetycover:ToprotectoperatorduringtheproductionwhichiscomplianttotheCEregulation. MainTechnicalParameters cuttingwidth 1.3M1.6M min.cuttingwidth 1mm max.cuttingO.D 150mm cuttingcoreO.D 1"–3" cuttingprecision ±0.1mm
